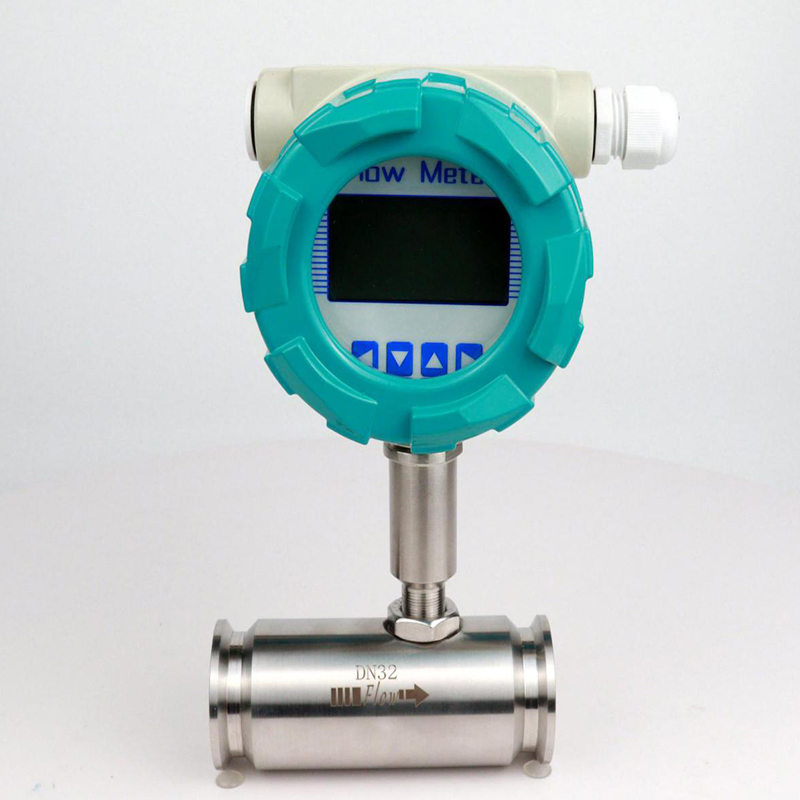

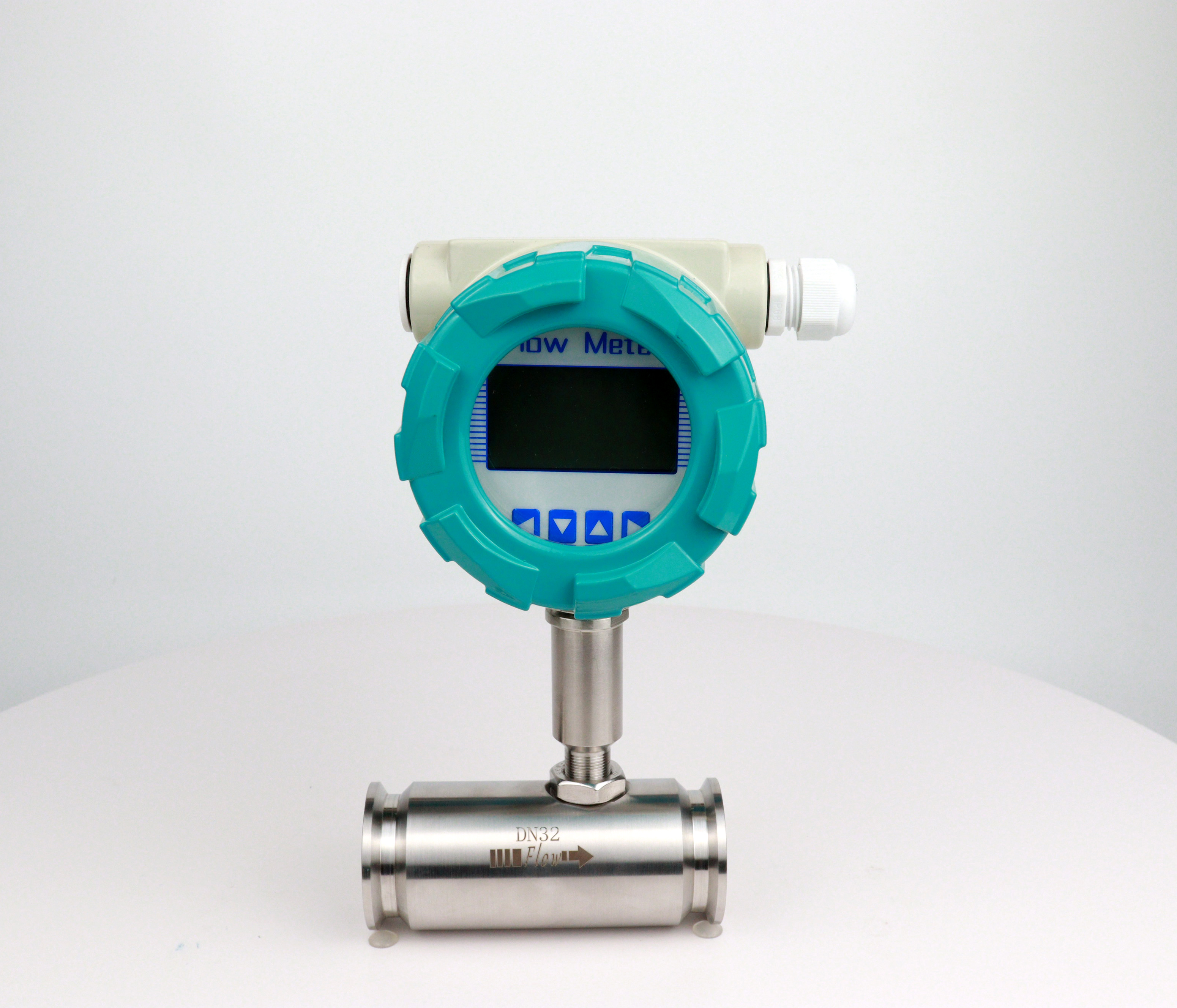

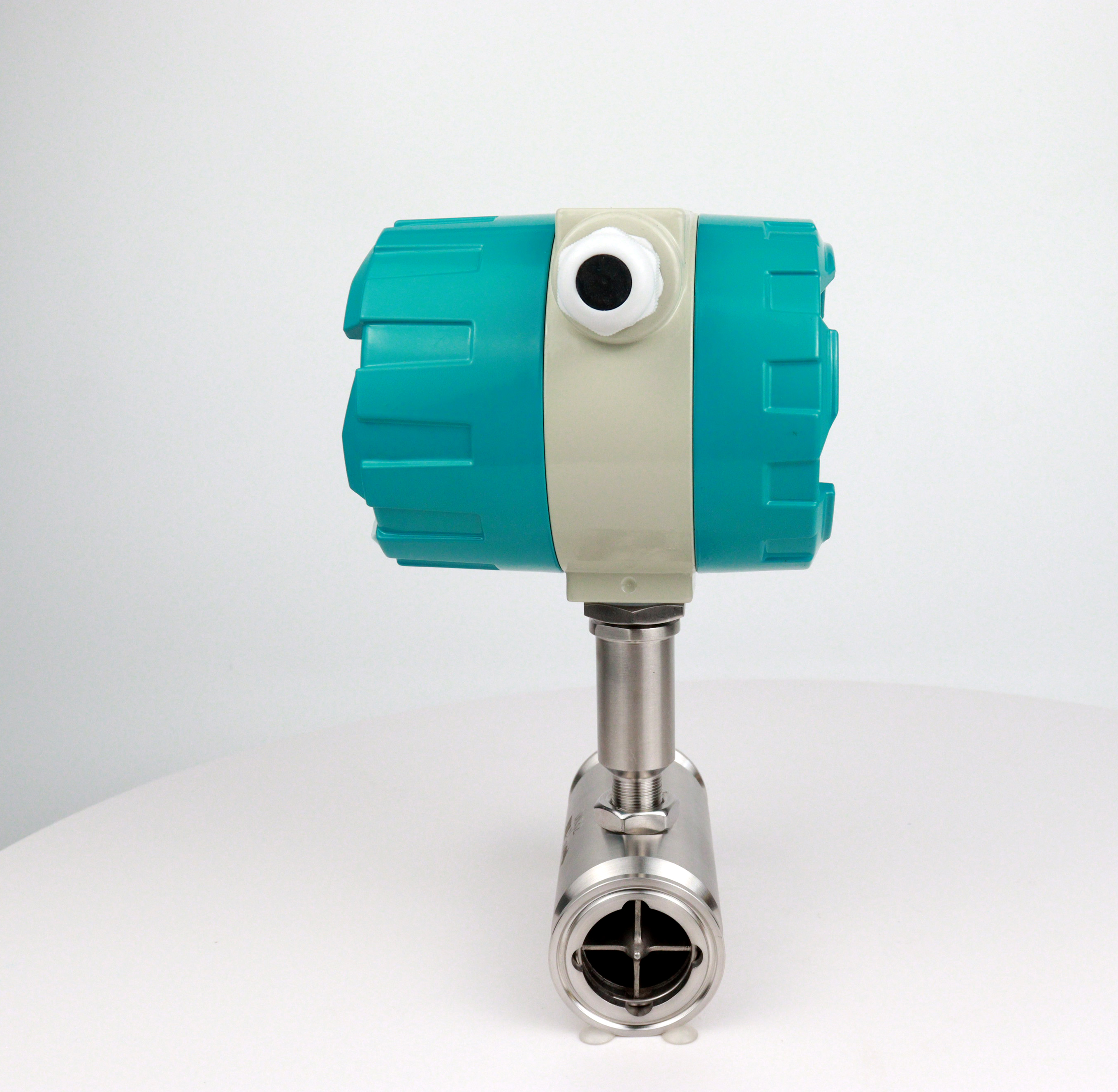

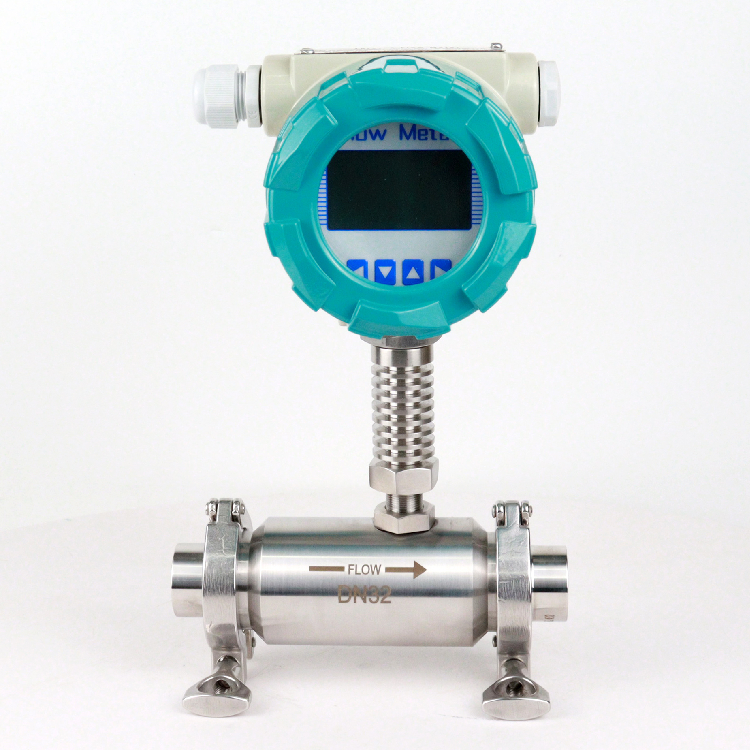

Sanitary turbine flow meter
Applicable mediumLiquid Oil, water, d
Not applicableGas
Features
Suitable diameter size DN4~DN65
Stainless steel 304 body material
Battery, 24V power supply optional
High accuracy 1.5%
Introduction
Sanitary liquid turbine flow meter?is a kind of speed instrument, which has the
advantages of high accuracy, good repeatability, simple structure,
small pressure loss and convenient maintenance.?Turbine flowmeter is
designed to maximize and reduce pressure drop, maintain high flow in an
extended flow range, and provide pulse output, which is linear flow.?It
has a wide range of application value in industries such as petroleum,
chemical industry, metallurgy, and urban gas pipeline network.
Technical parameters
Model |
LWGY-N |
LWGY- A |
LWGY-B |
LWGY-C |
Signal Output |
Pulse |
4-20mA |
No |
4-20mA/Pulse |
Power Supply |
24VDC±15% |
24VDC±15% |
Lithium Battery |
24VDC±15% |
Accuracy |
1.0% or 0.5% of rate |
|||
Flow Range |
Standard |
Standard or Extended |
||
Local Display |
No |
Yes |
||
Communication |
No |
Optional RS485 |
||
Housing Material |
SS304 or SS316 |
|||

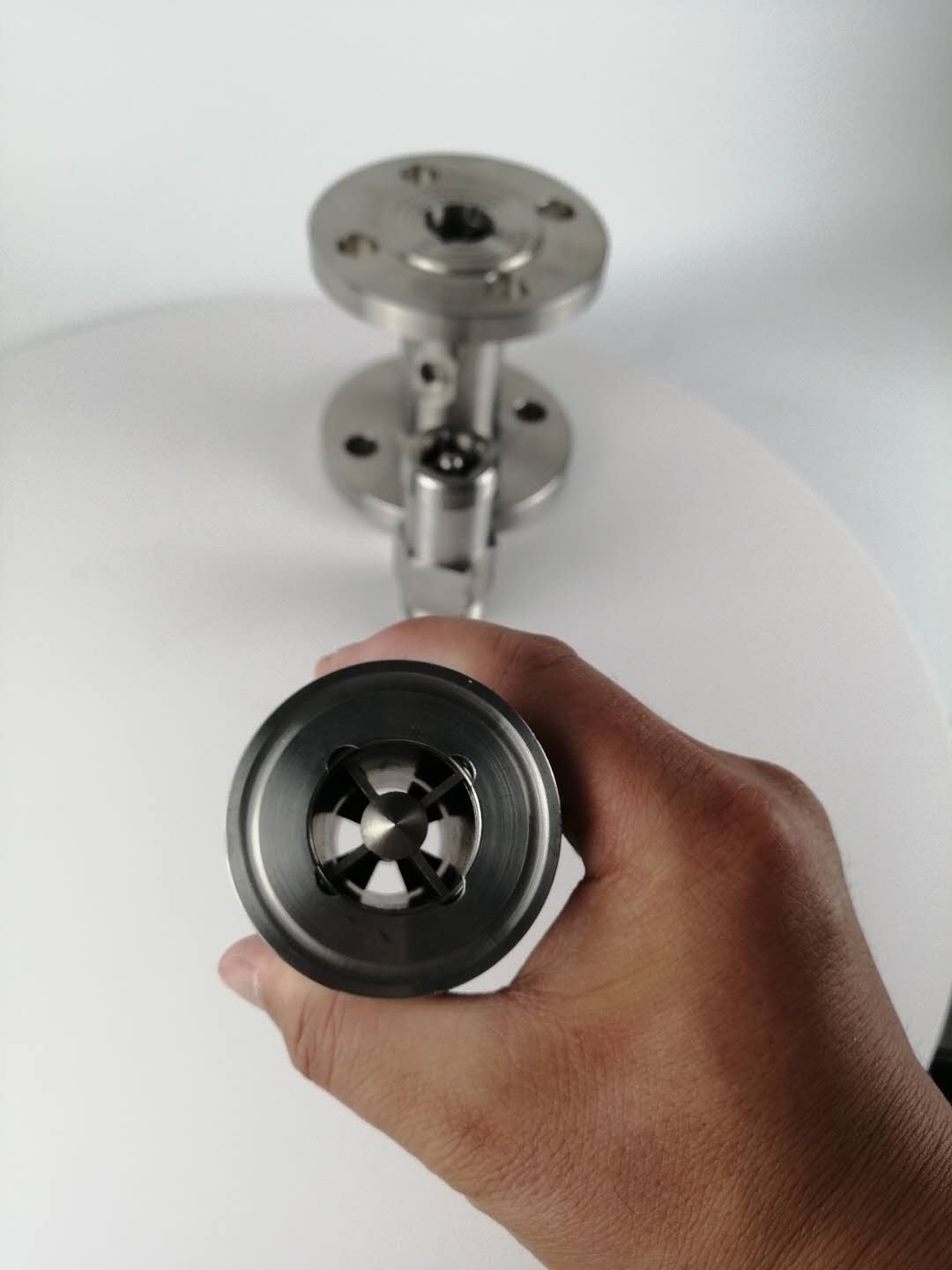

Impeller Material |
2Cr13 or CD4Mcu Stainless Steel |
|||
Explosion Proof |
ExdIIBT6 or ExiaIICT4 |
ExdIIBT6 or ExiaIICT4 |
||
Protection Level |
IP65 |
IP65 |
||
Diameter |
DN4 to DN200 |
|||

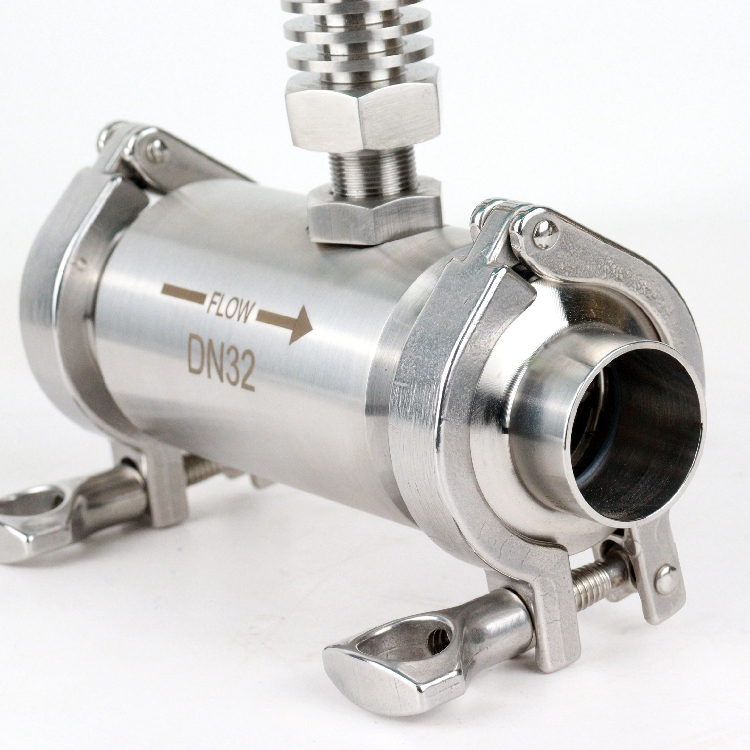

End Connection |
1. Flange (Standard: ISO; Optional: ANSI, DIN, JIS); |
|||
Fluid Temperature |
-20°C~120°C (High Temperature Type: -20°C~150°C) |
|||
Ambient Temperature |
-30°C~60°C |
