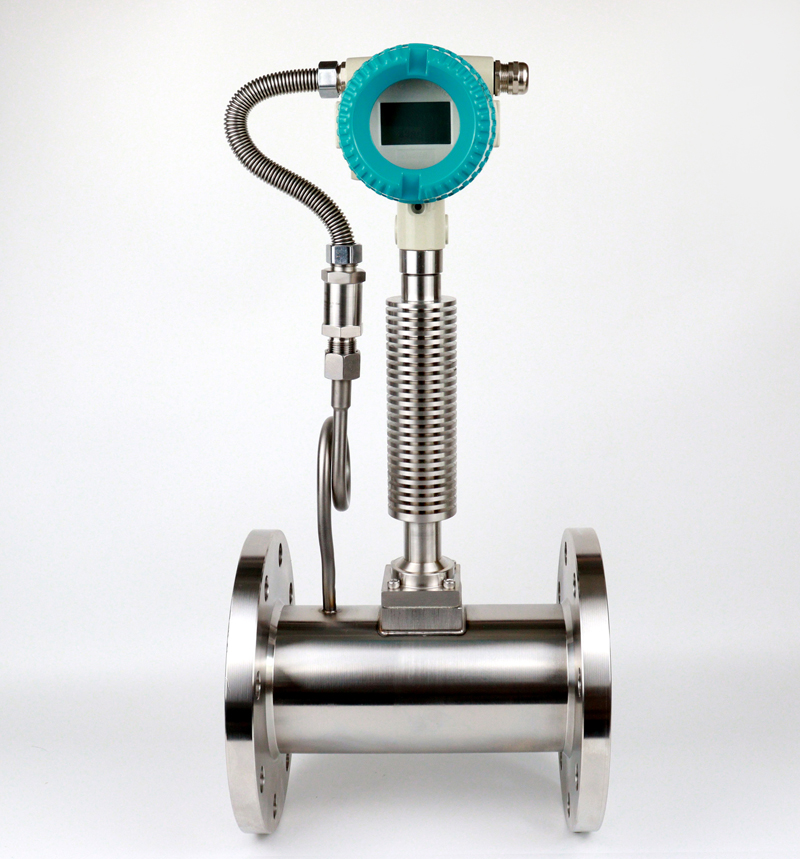

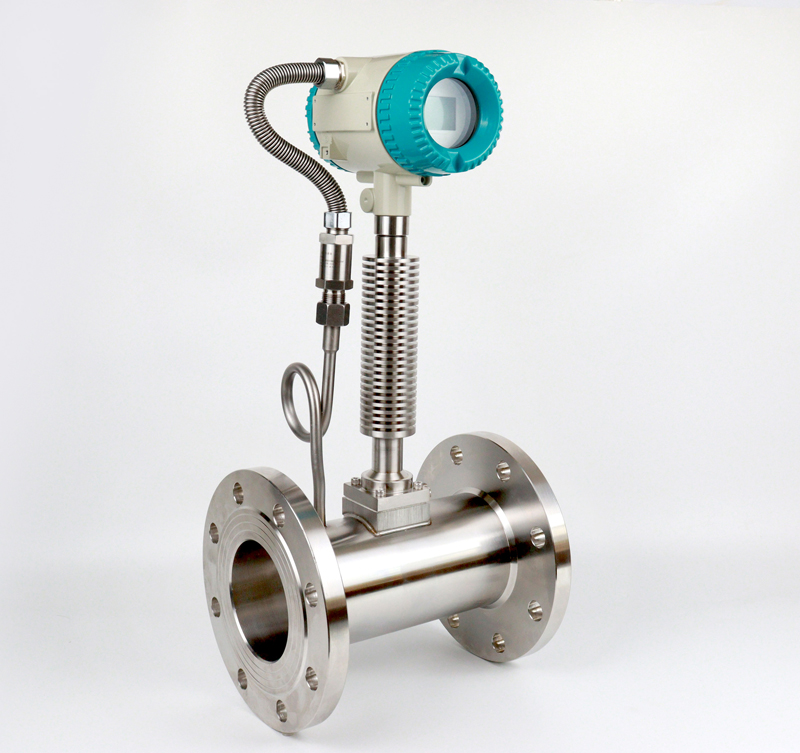

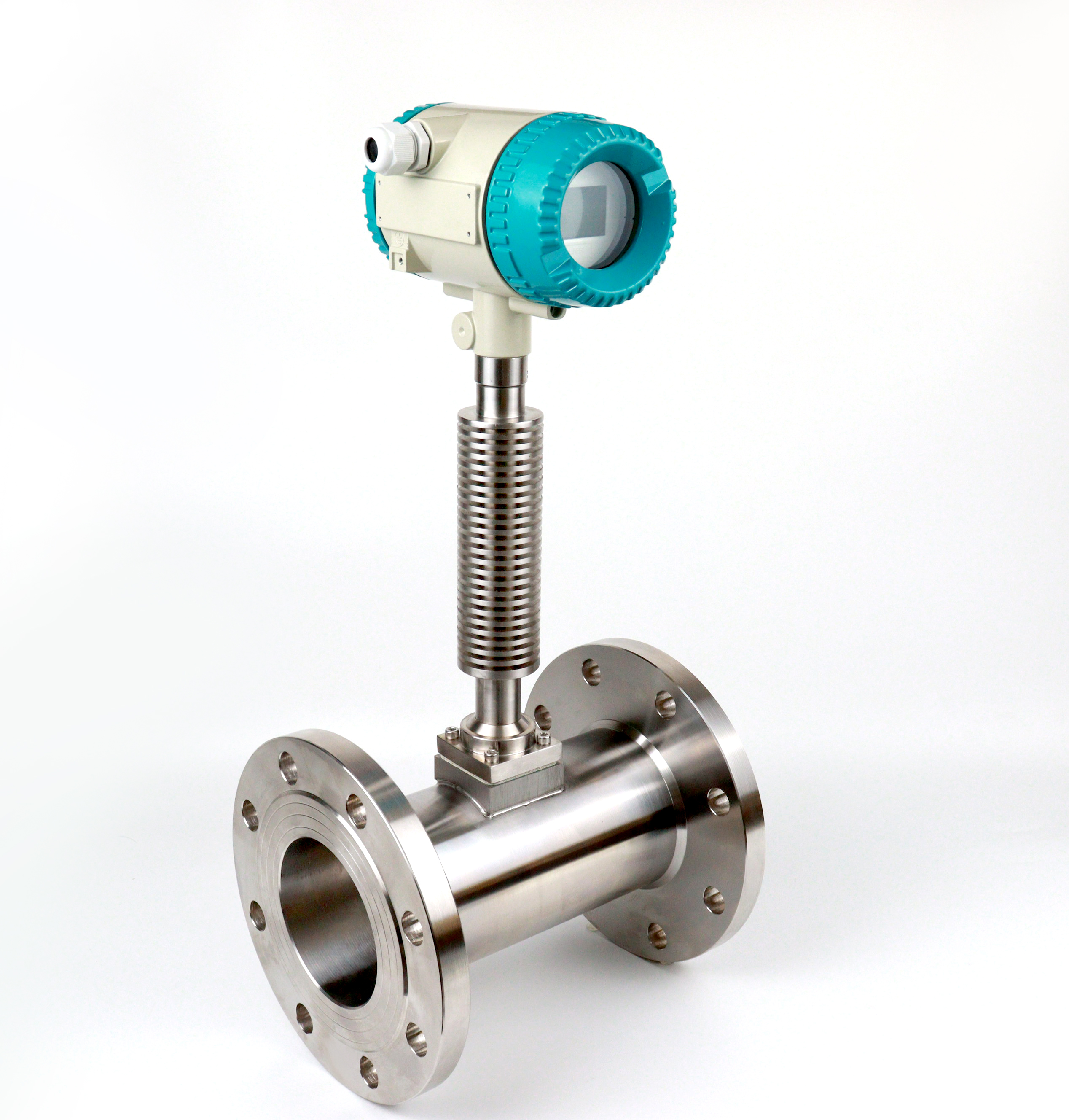

Smart Vortex Flow Meter

Smart Vortex Flow Meter

Applicable mediumgas, liquid, steam

Not applicable

Vortex flow meters is the basic meter for volume flow application, usually used to measure flows of liquid, gas and steam It is available in flange connection and wafer-type, and insertion type for large pipe size.
0371-26665688 13353783998
Description of product details

Application


  • (non-)conductive liquids, gases, saturated and superheated steam

  • Gross/net heat metering of steam and hot water

  • Monitoring of compressor output and evaluation of Free Air Delivery (FAD)

  • ?Industrial gases (natural gas, nitrogen etc.)

  • ?Compressed air systems

  • Thermal oils,Desalinated water etc.



Breif introduction


LUGB vortex flow meters are widely used in the measurement and control of?superheated steam, saturated steam, compressed air and general gases?(oxygen, nitrogen, hydrogen, natural gas, gas, etc.), water and liquids?(such as water, gasoline, alcohol, benzene, etc.)?in petroleum, chemical, metallurgy, heat, textile, paper and other industries.


Features

?

1. Simple structure,? no moving parts, high reliability

2. High accuracy 1.0%, 1.5%

3. Wide measuring range, up to 1:10 ratio

4. Resist high temperature up to 350℃,normal temperature up to 250℃

5. Integral forging, anti-rust, long service life

6,Less pressure loss, lower operating costs, more energy-saving significance.


Technical parameters


Item

Vortex flow meter parameters

Medium

Gas,?air, oxygen, nitrogen, gas, natural gas, chemical gas, etc.

Liquid, water, high temperature water, oil, food liquid, chemical liquid, etc.

Steam, saturated steam, superheated steam, etc.

Nominal diameter

(mm)

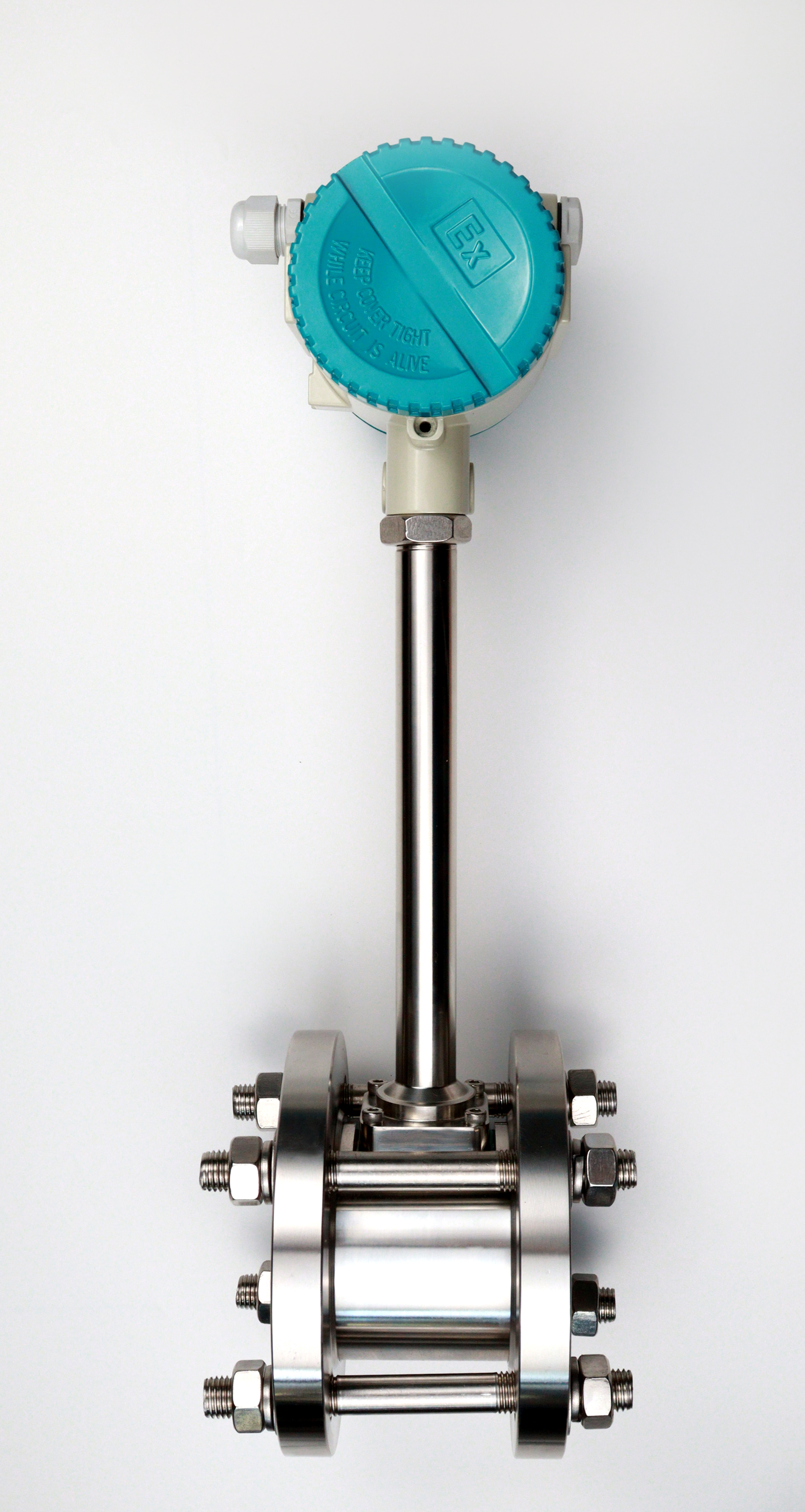

Flange/ wafer type: 15,20,25,40,50,65,80,100,125,150,200,250,300

Insertion type: 300~1000

Nominal press

(MPa)

DN15-DN200 4.0(>4.0 supply agreement)

DN250-DN300 1.6(>1.6 supply agreement)

Medium temperature

(℃)

Standard type:-40~250

High temperature type:?,-40~350?

Body material

Carbon steel, SS304, SS316

Accuracy

Flange/ wafer: ±1%R(for liquid)

Flange/ wafer: ±1.5%R(for gas)

Insertion type:?±2.5%R

Power

Sensor/ transmitter:?24V?DC

Battery-powered:3.6V battery

Output single

?Pulse, ?4 ~ 20mA

Explosion-proof marks

?Intrinsic safety type:ExdⅡia CT2-T5 , Flameproof type:ExdⅡCT2-T5 ?????

Protection grade

?IP65 ???

Environmental conditions

Temperature: -20℃~55℃,Relative humidity: 5%~90%,Atmospheric pressure: 86~106kPa
