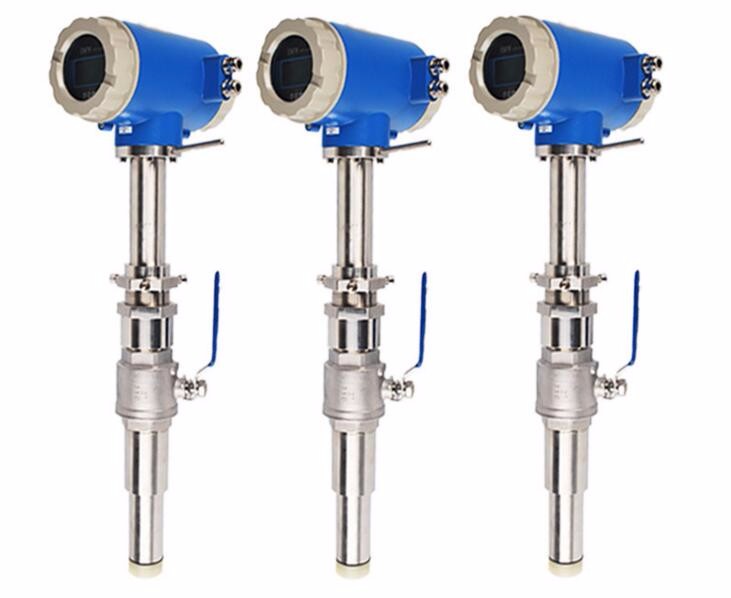

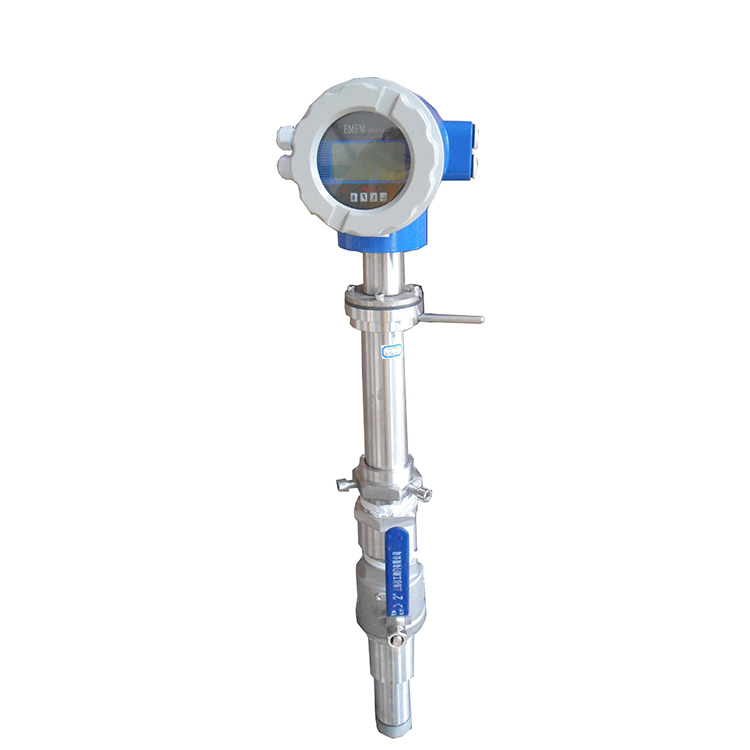

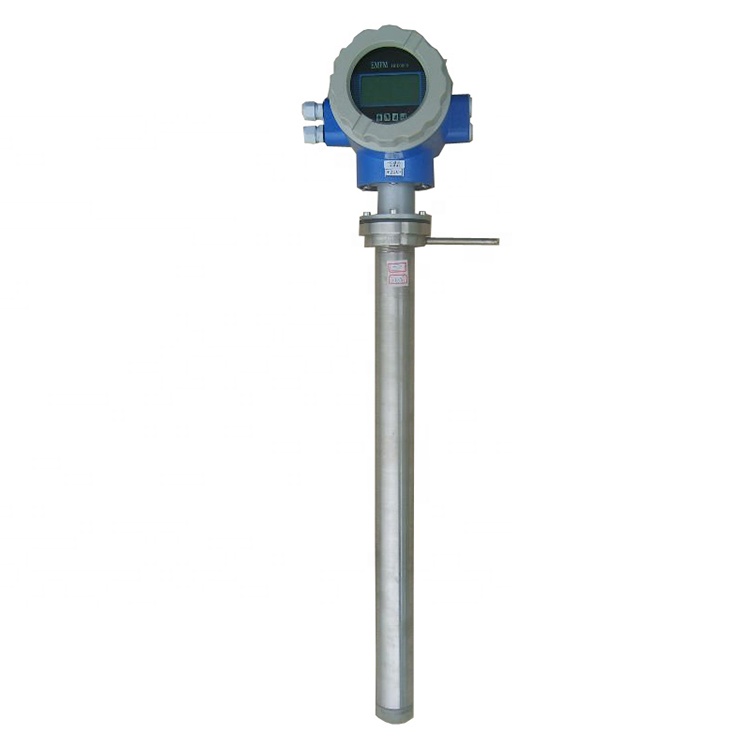

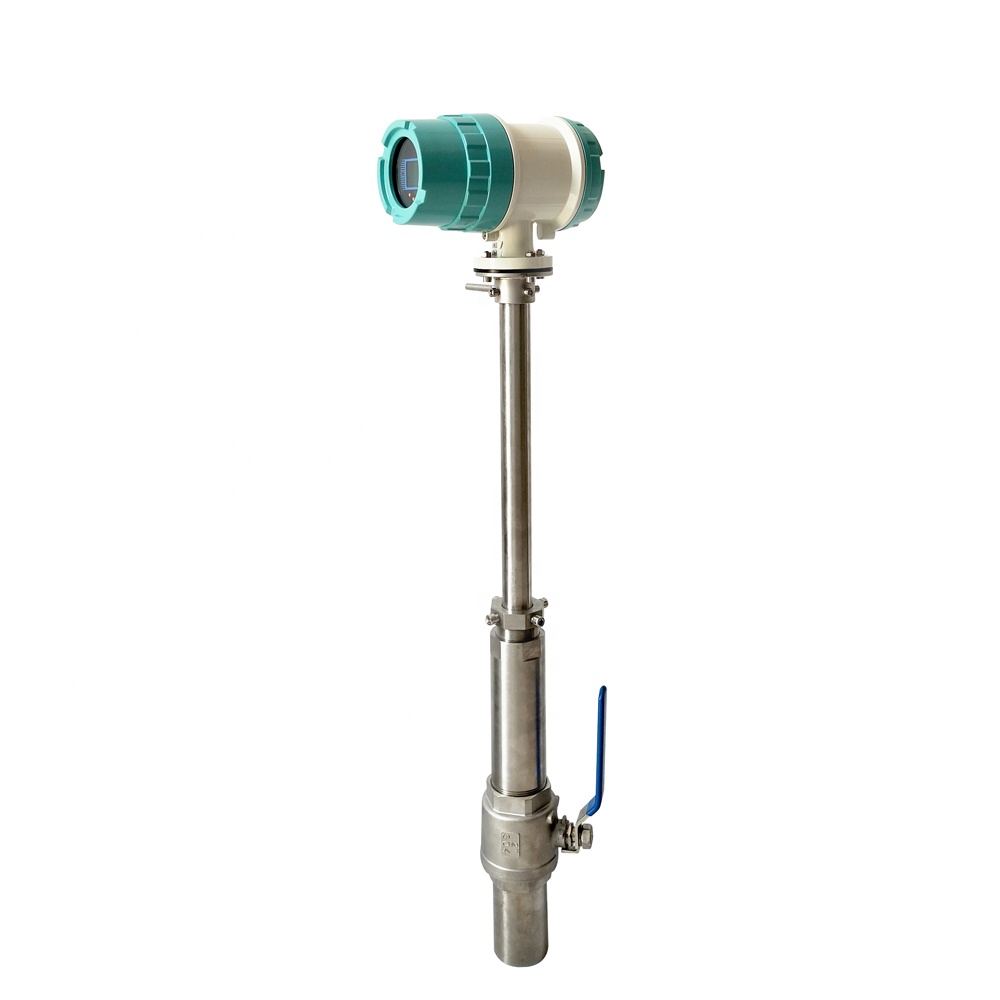

DN150~DN3000 Insertion Electromagnetic Flowmeter

DN150~DN3000 Insertion Electromagnetic Flowmeter

Applicable mediumLiquid

Not applicableGas

Insertion type electromagnetic flowmeter is a new type of fluid flow meter developed for large pipe size application.
0371-26665688 13353783998
Description of product details

Feature


Applicable sizes 150~3000mm

Operating pressure should be less than 1.6MPa (230 PSI)

Velocity range of 1~10m/s (3-36 fps)

Accuracy is? ±2.5%

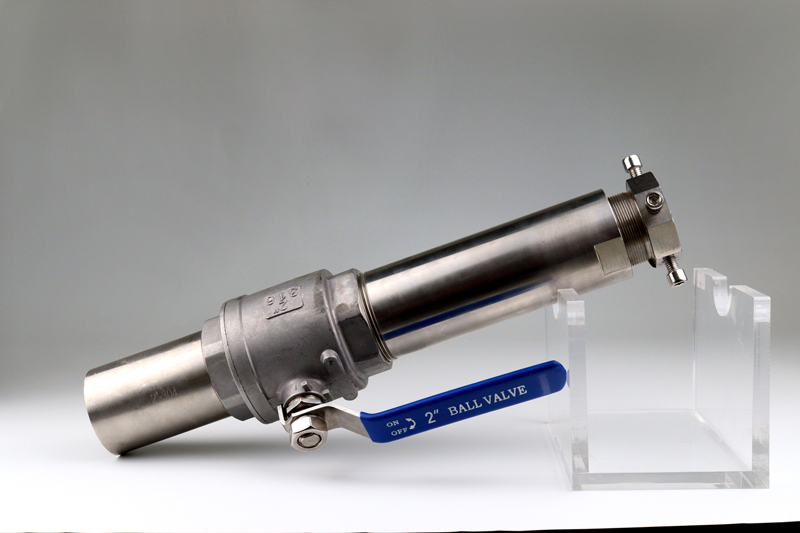

Hot-tap sensor can be installed and retracted from process piping

Conductivity of measured medium should be more than 50μs/cm

Electrode materials: SUS316L, Hastelloy B, Hastelloy C, Ta, Ti, Pt.

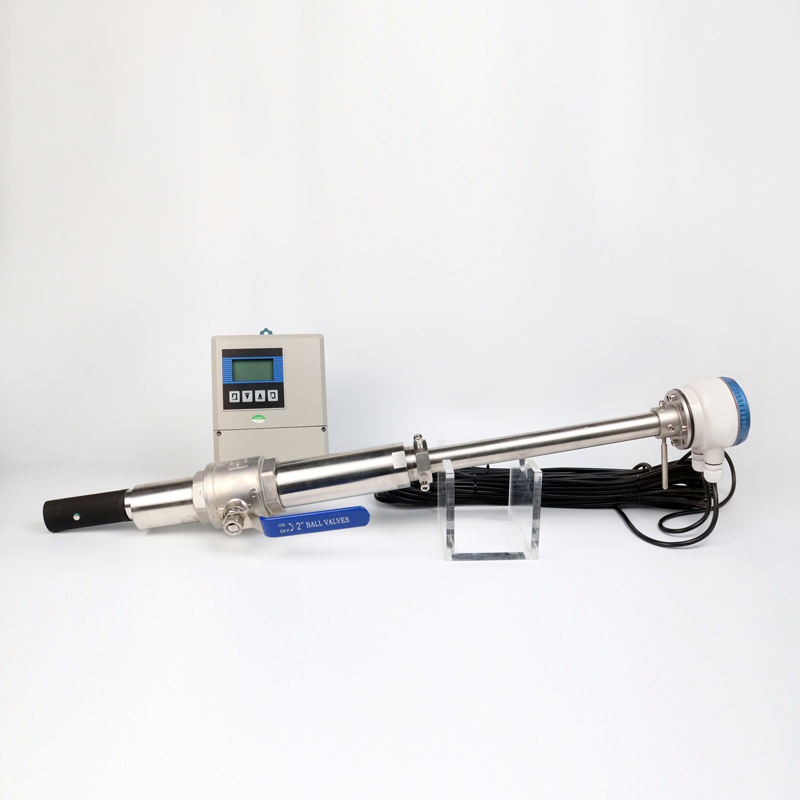

The max. distance between sensor and converter should be less than 50m (165 feet)


Specification


Cable?Entry?:?2?X?PG11?

Measuring?Range?:?1?-?10?m/s?-bi-direction

Size?:?150-2000mm??

Conductivity?:?to?be?more?than?50?uS/cm

Temperature?up?to?70?deg?C?

Connection?:?Weld,?Flange

Pressure?up?to?1.6Mpa??

Wetted?part?:?SS304

Resistance?excitation?Coil:???50~70?ohm?(std)

Protection?:?IP65(convertor)?/?IP?67(sensor)

Materials?(std)?:

Accuracy?:?+/-2.5%?of?reading

Transmitter?housing?:?Aluminium

Power?supply:?24?VDC,?220?VAC

Proble?:?304SS

Outputs:4-20mA,?Pulse,?frequency

Detector?housing?:?PVC

Communication:RS485?Modbus(std.),RS232?Modbus,?HART,GPRS,?Profibus

Electorde?:?316L

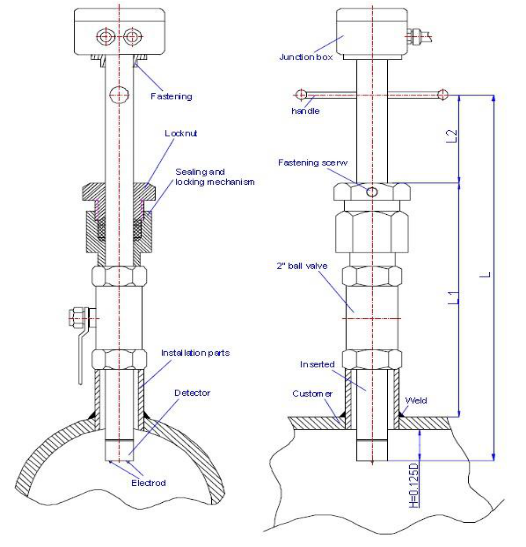

Dimension
